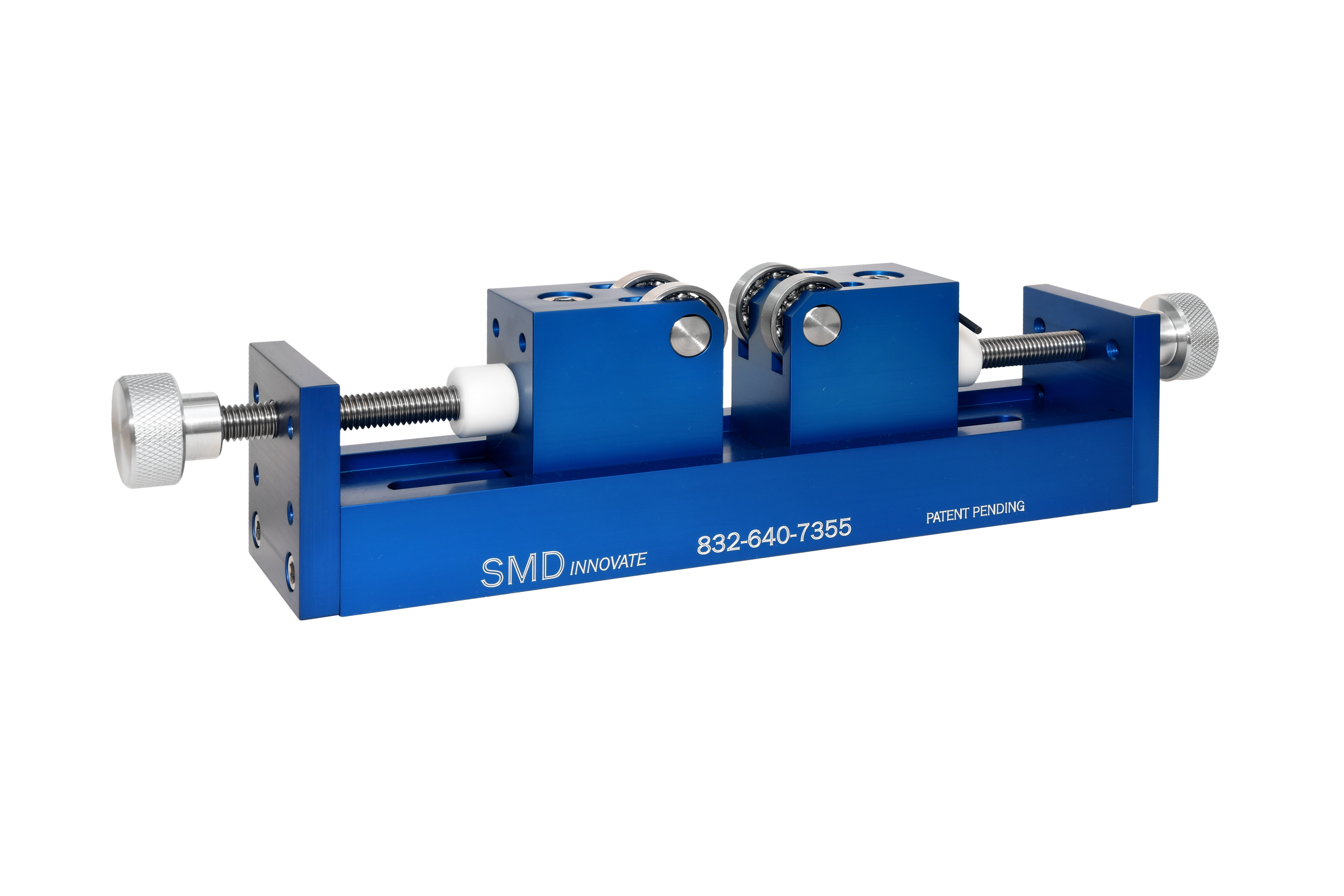

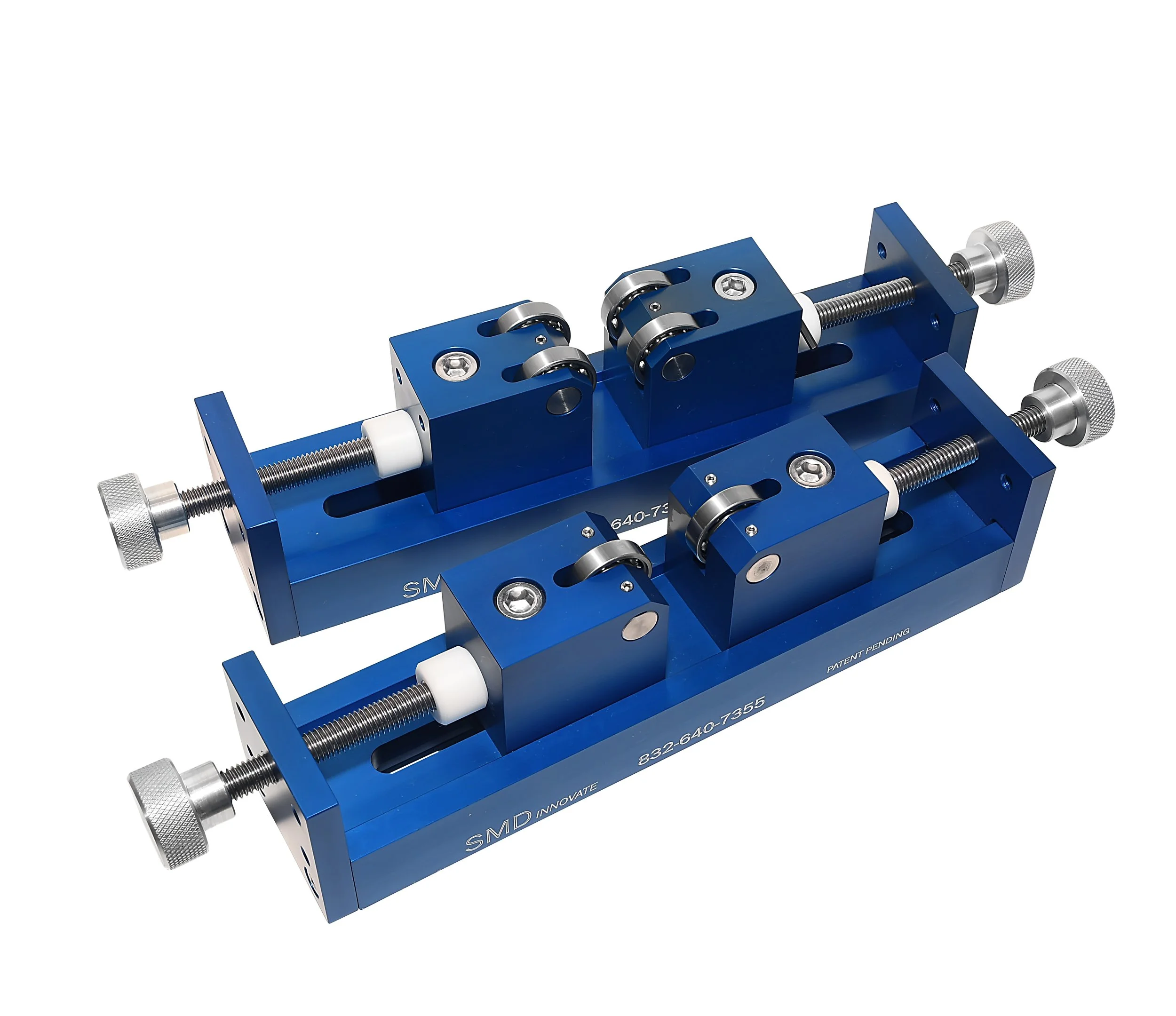

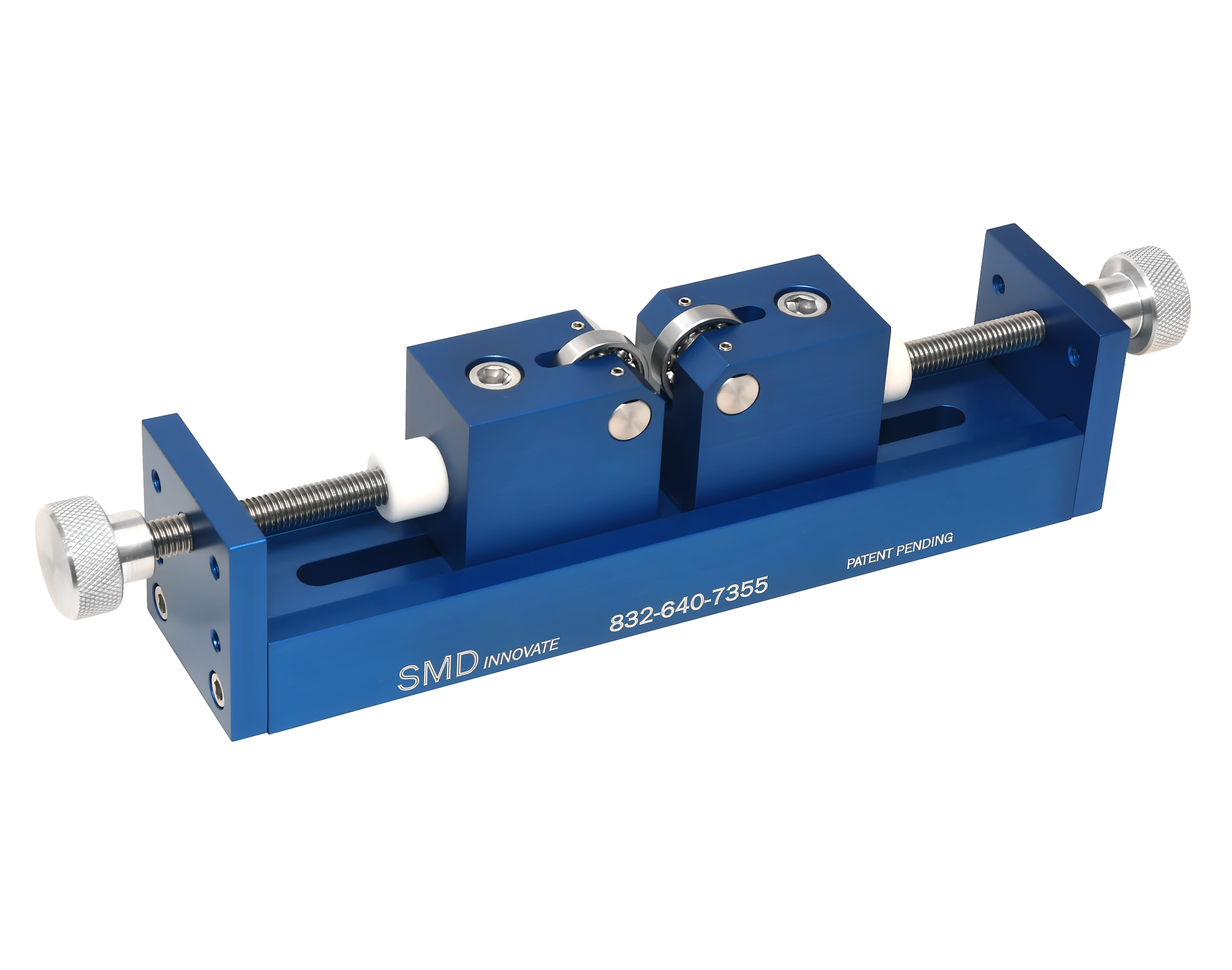

Orient mill details even on short parts with our double bearing slide. Lock part into position with locking bearings and Delrin tipped locking screw on Top Clamp. To level a part simply adjust slides into approximate position. Adjust slides with knurled / delrin adjustment knobs until indicated level and lock slider blocks. Perfect for inspection rooms with CMM's and other programmable inspection devices. No more scratching precision finishes at the final stage.
